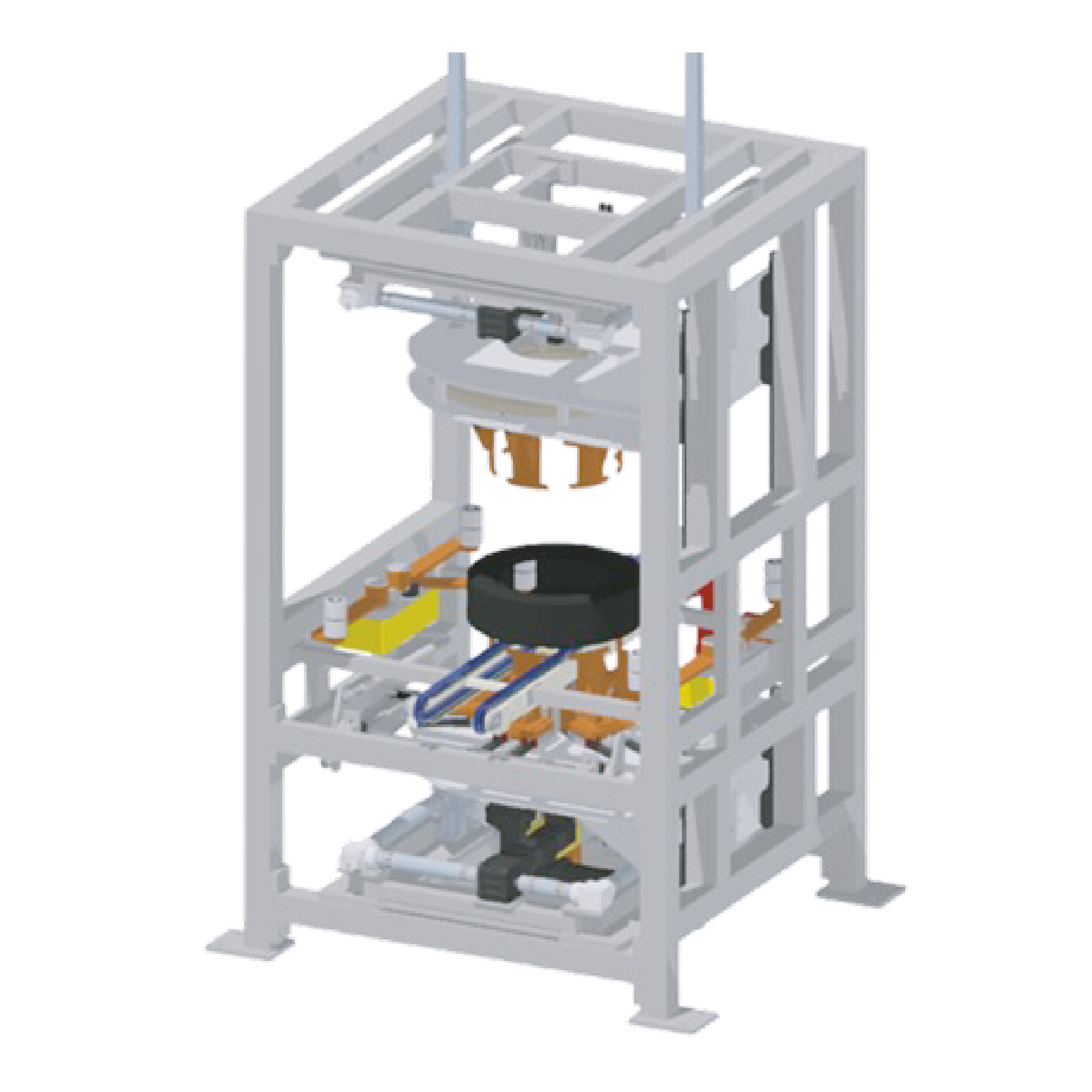

- Belt Conveyor
Transports the wheel into the mach i ne
- Lifting Device
Disengages the wheel from the belts to allow free movement far pracessing
- Pneumatic Centering System
Uses an external self-centering mechanism to align the wheel
- Expansion Spindle
Secures the rim via the centrai bare and rotates it to the precise phase angle
- Upper Tyre Gripper
Clamps and squeezes the tyre sidewall to hold it stationary while the rim rotates
- Vision System
Localizes tyre and rim marks using shape and color analysis
(minimum 1 cm diameter)
- llluminator & Shielding
Provides consistent lighting and blocks external interference far accurate dot recognition
- AC Gearmotor & lnverter
Drives the rotation and transport systems with adjustable speed and positioning
